High-Speed Pallet Loading & Unloading

Pallsol-CC (Chain Conveyor)

Speed up high-volume pallet loading and unloading with a chain conveyor system built for continuous truck operations. Pallsol-CC supports mixed pallets and compatible load carriers, helping reduce manual handling and keep inbound and outbound flows more consistent.

Product Detail

Pallsol-CC Pallet Chain Conveyor System

Engoal Pallsol-CC is a pallet chain conveyor system designed for automated loading and unloading between dock areas and compatible container trucks. Using chain-driven pallet transfer, the system supports fast, repeatable movement of palletized cargo during both inbound and outbound logistics operations.

Designed for high-throughput environments, Pallsol-CC supports mixed pallet and load-carrier configurations and helps reduce repetitive manual handling while creating a more consistent truck loading and unloading process.

Key Advantages of Pallsol-CC

Fast 4–6 Minute Trailer Handling

With a specified throughput of 4–6 minutes per trailer, Pallsol-CC is designed for high-frequency pallet loading and unloading operations where faster truck turnaround is important.

Automated Loading & Unloading

Pallsol-CC supports pallet transfer in both directions, allowing the same chain conveyor system to handle outbound loading and inbound unloading operations.

Flexible Mixed-Load Compatibility

The system supports different compatible pallets and load carriers, including wood pallets, plastic pallets, 9-leg pallets, and custom metal containers, making it suitable for mixed-load logistics requirements.

Heavy-Duty Pallet Transfer

With a rated system load of up to 30 tons, Pallsol-CC is designed to support demanding industrial pallet handling and high-volume cargo transfer.

How the Chain Conveyor System Works

Pallsol-CC uses coordinated chain conveyor platforms at the dock and inside the trailer to transfer palletized cargo between the facility and the vehicle. The chain-driven system moves compatible pallets and load carriers along a controlled transfer path for efficient loading and unloading.

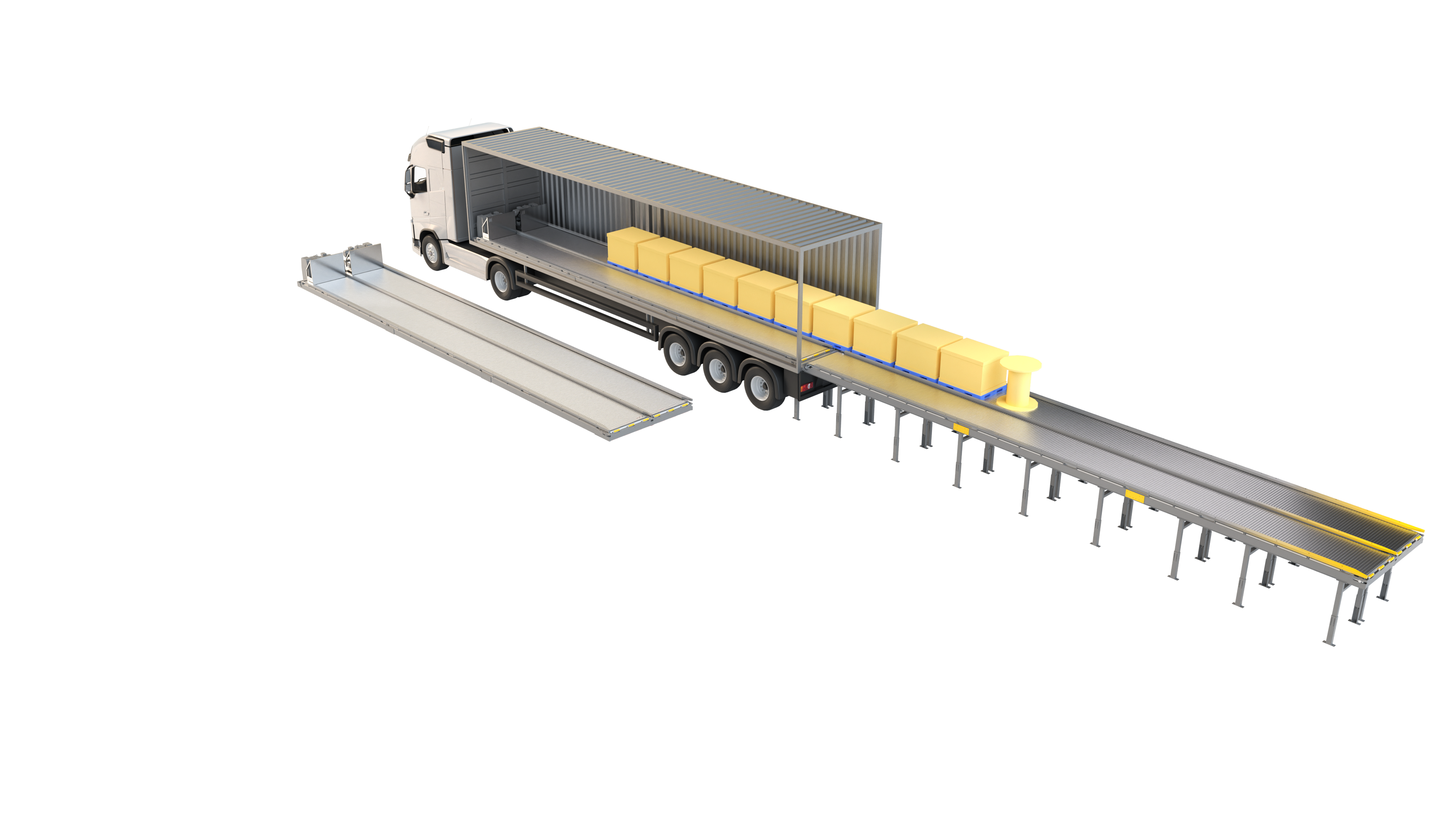

Pallsol-CC automated pallet loading and unloading operation with chain conveyor system

1. Align & Prepare

The truck and conveyor system are positioned for pallet transfer based on the project configuration.

2. Chain-Driven Transfer

The pallet chain conveyor moves palletized cargo between the dock and trailer through controlled chain-driven motion.

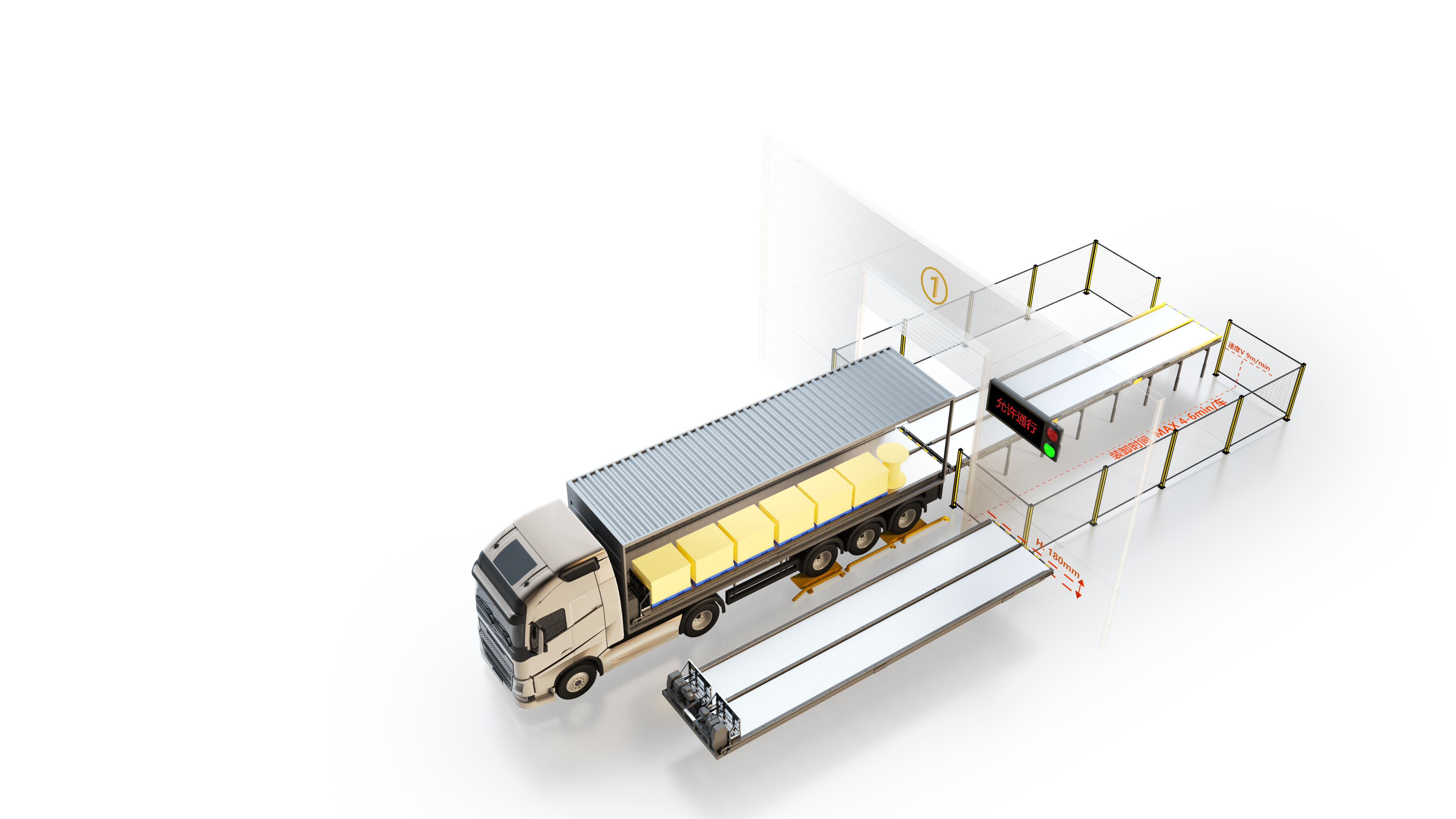

Pallsol-CC chain conveyor transferring palletized cargo during automated loading and unloading

Pallsol-CC pallet transfer connected with palletizing, scanning and warehousing operations

3. Connect to Downstream Operations

After pallet transfer, cargo can continue into downstream conveying, scanning, palletizing, or warehousing processes based on the project configuration.

Pallet & Load Carrier Compatibility

Pallsol-CC supports different pallet and load-carrier formats for automated truck loading and unloading, including Euro pallets, GMA pallets, 9-leg pallets, wood pallets, plastic pallets, and compatible custom metal containers. Mixed loading can be supported based on project requirements.

Typical Pallsol-CC Applications

High-Volume Warehouse Loading

Support frequent pallet loading from warehouse or staging areas into container trucks where fast and repeatable transfer is required.

Inbound Pallet Unloading

Automate pallet transfer from trucks into receiving or warehouse areas to reduce repetitive manual handling during inbound logistics.

Mixed Pallet & Carrier Operations

Handle compatible pallet and carrier formats within the same logistics environment, supporting operations with varied load requirements.

High-Frequency Manufacturing Logistics

Connect palletized goods movement between production, staging, storage, and truck operations in facilities with frequent inbound and outbound flows.

Safety for Automated Pallet Transfer

Pallsol-CC includes multiple safety measures for automated loading and unloading operations, including a safety fence, safety light curtain, and emergency stop controls.

Optional Configurations

Depending on project requirements, Pallsol-CC can also be configured with an automatic trailer door curtain and independent power supply.

Pallsol-CC Technical Specifications

The key specifications below provide a quick reference for Pallsol-CC pallet handling performance, vehicle compatibility, and operating capability.

Quick Specifications

Parameter	Specification
Applicable Vehicle Type	Container Trucks
Operation Mode	Loading & Unloading
Throughput	4–6 min/trailer
Rated Load	Up to 30 T
Compatible Load Carriers	Various pallets / carriers; mixed loading allowed

For complete technical specifications, please visit our Download Center.

Pallsol-CC FAQs

What is a pallet chain conveyor system?

A pallet chain conveyor system uses driven conveyor chains to transfer palletized cargo along a controlled path. Pallsol-CC applies this technology to automated pallet loading and unloading between dock areas and compatible container trucks.

Can Pallsol-CC perform both loading and unloading?

Yes. Pallsol-CC is designed for both automated loading and unloading, allowing the same system to support inbound and outbound pallet transfer operations.

What pallet and load-carrier types can Pallsol-CC handle?

Pallsol-CC supports compatible wood pallets, plastic pallets, 9-leg pallets, and custom metal containers. Mixed loading can also be supported based on project requirements.

How fast can Pallsol-CC load or unload a trailer?

The current product specification lists a throughput of 4–6 minutes per trailer. Actual cycle time may vary depending on cargo configuration, pallet type, site conditions, and project setup.

How is Pallsol-CC different from other Pallsol systems?

Pallsol-CC uses a chain conveyor system for high-speed pallet loading and unloading. Other Pallsol configurations use different transfer technologies to support different pallet, vehicle, and operating requirements. Explore the Pallsol Series automated pallet loading systems to compare available configurations.
